Lia Hanging Rail Sets

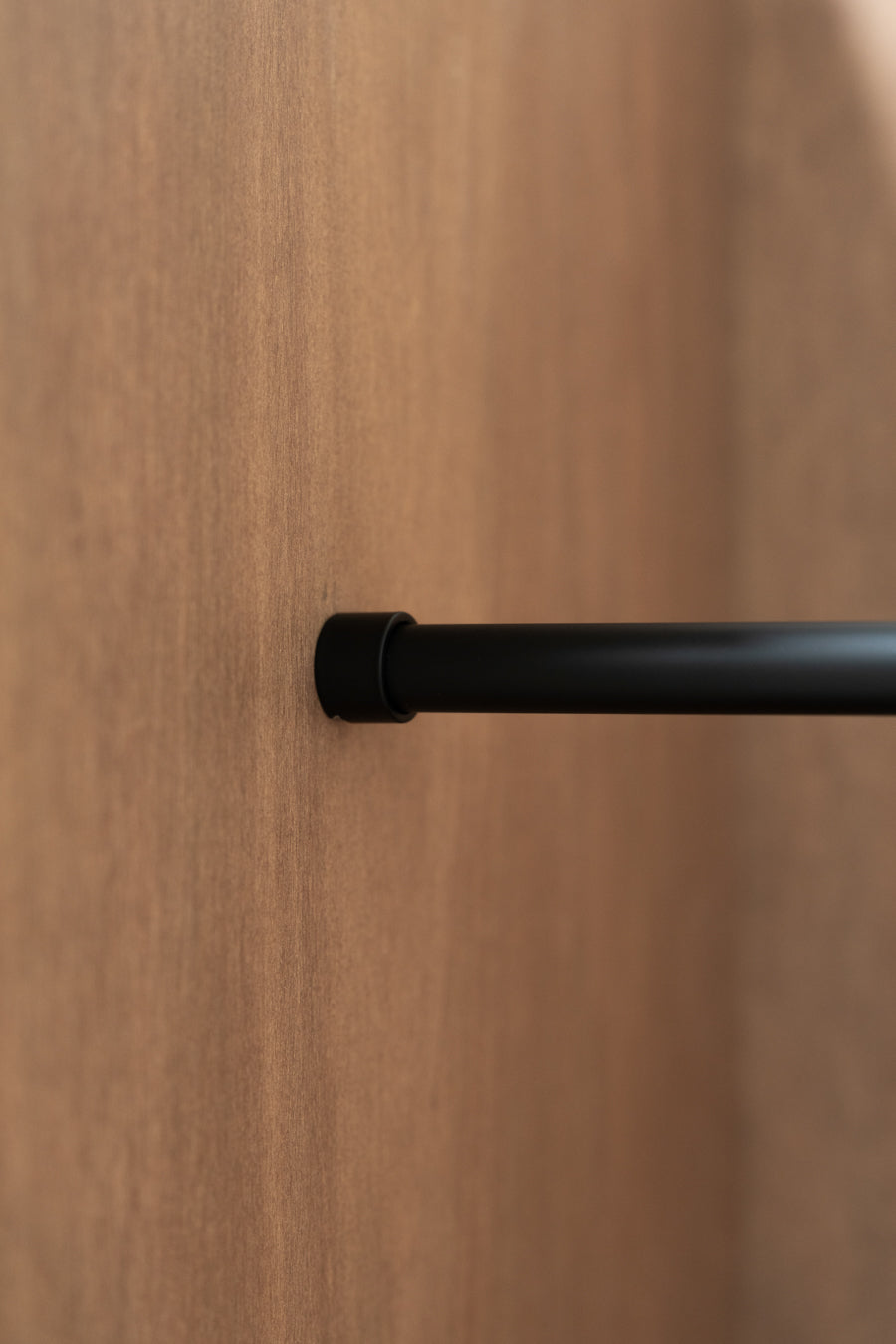

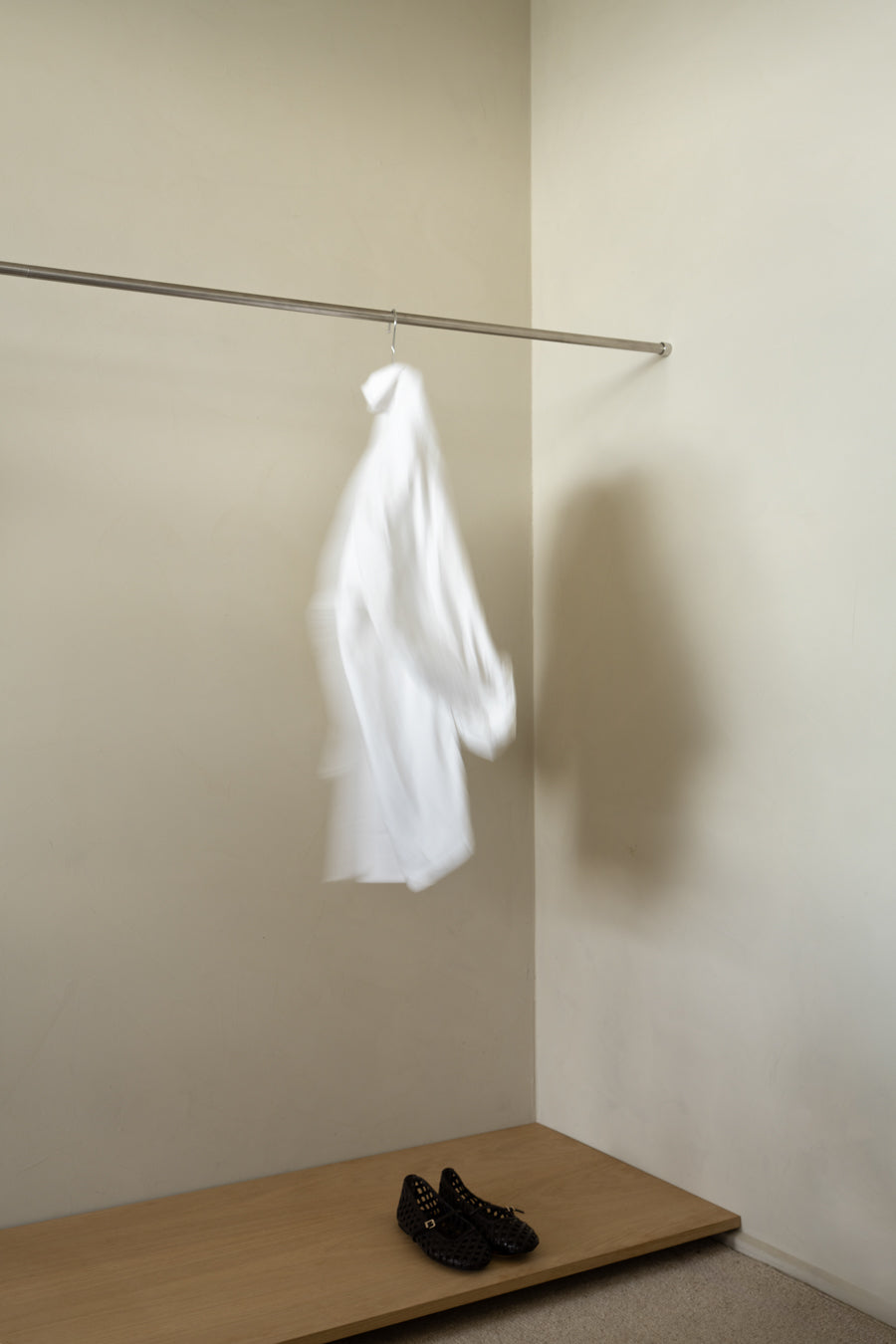

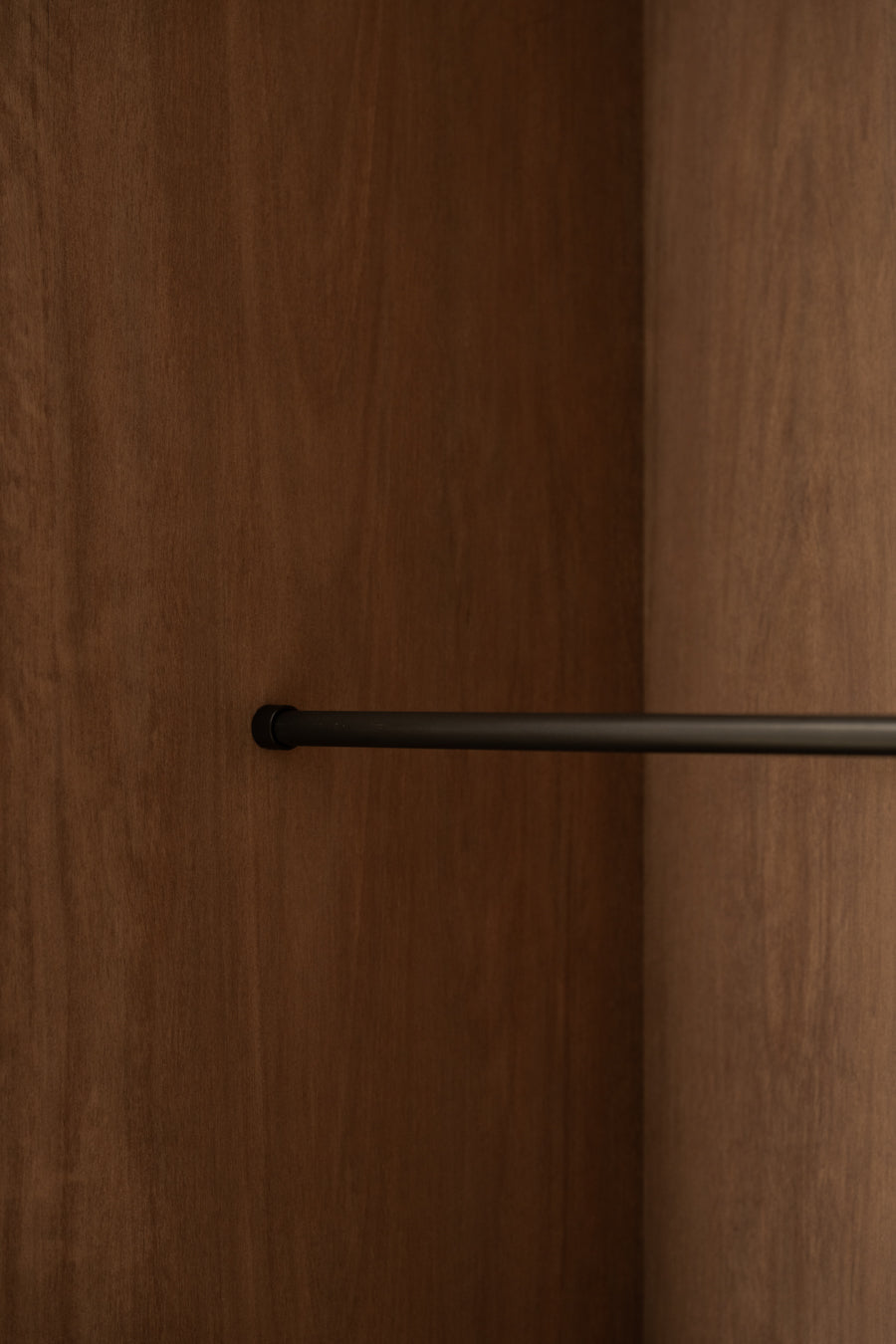

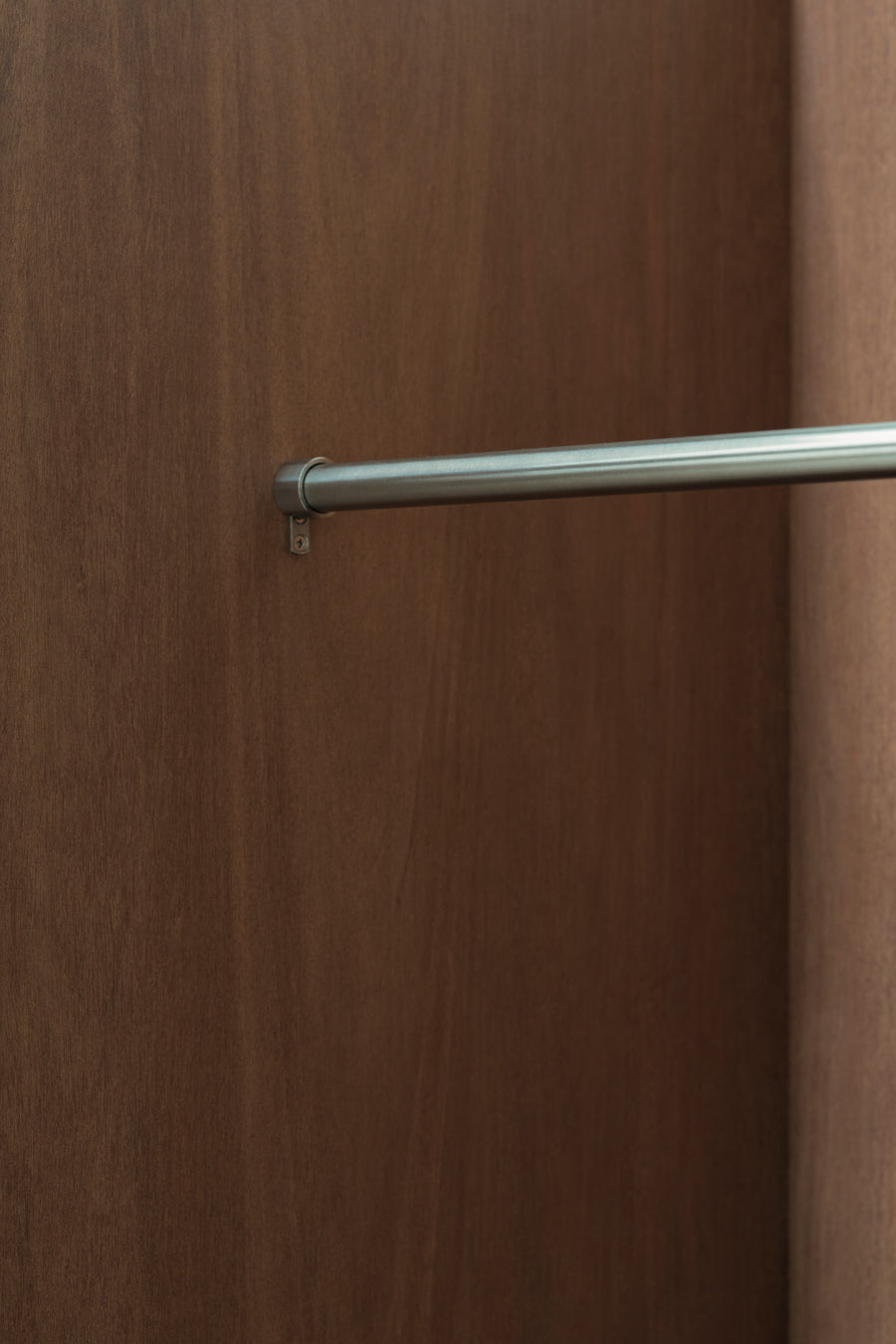

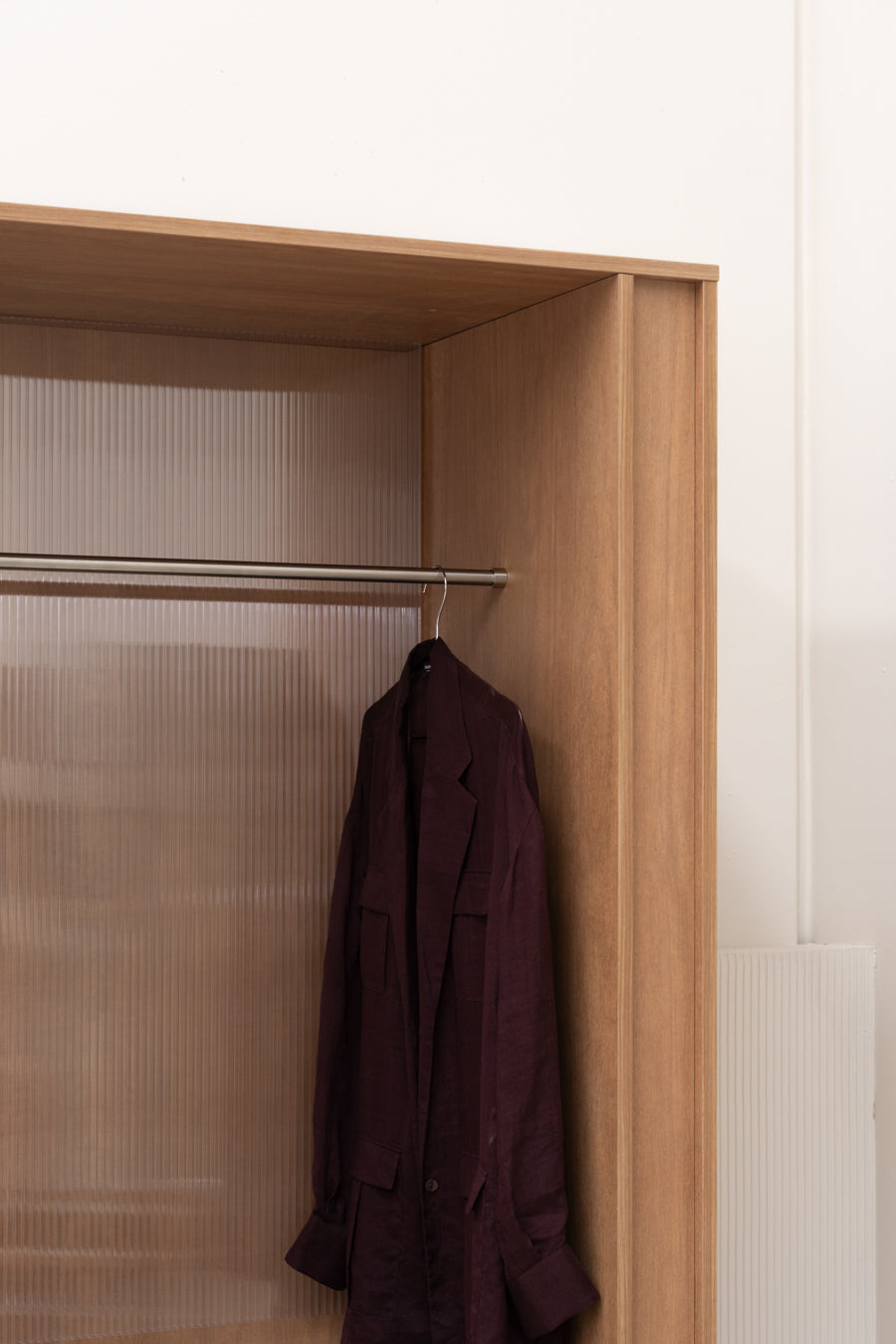

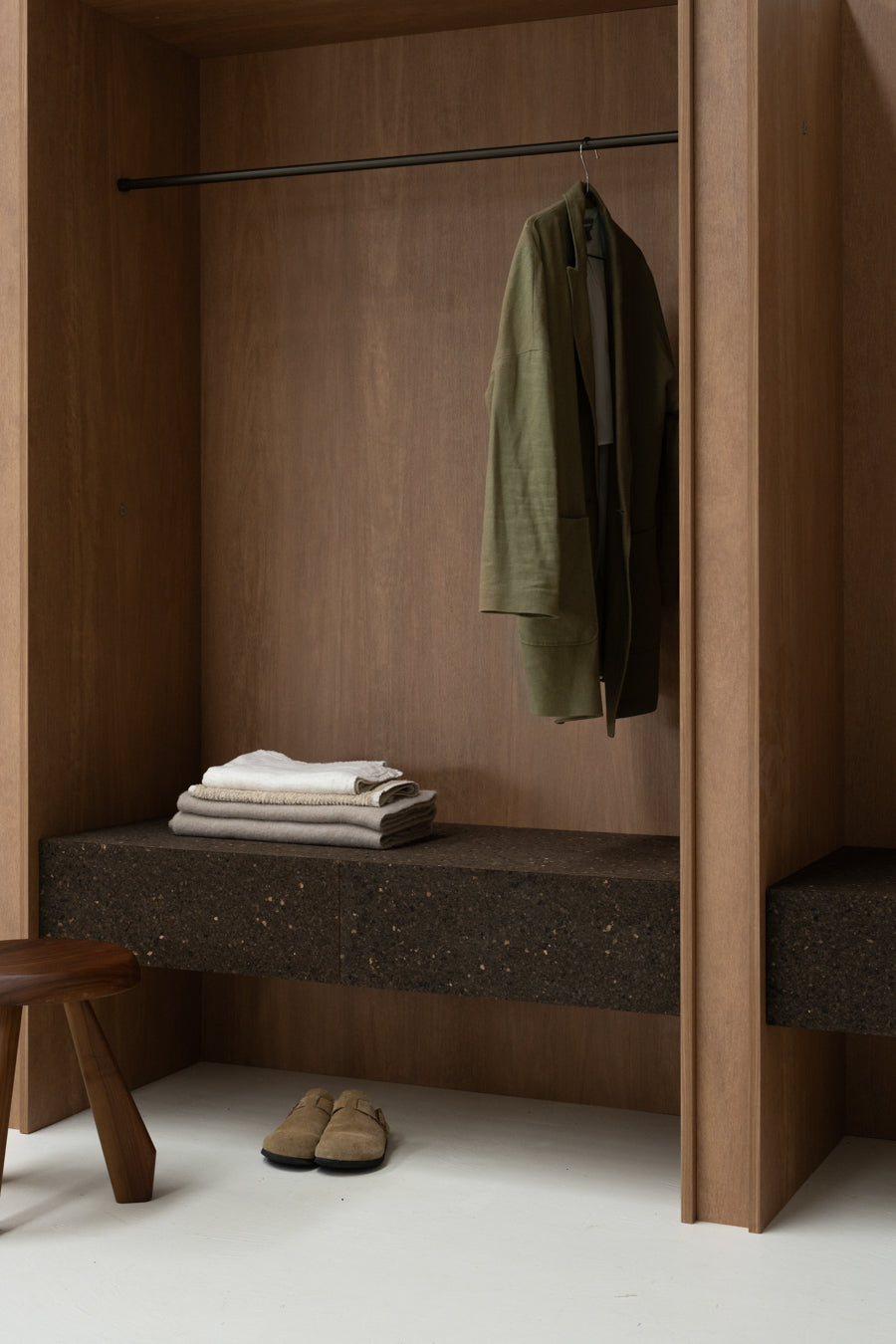

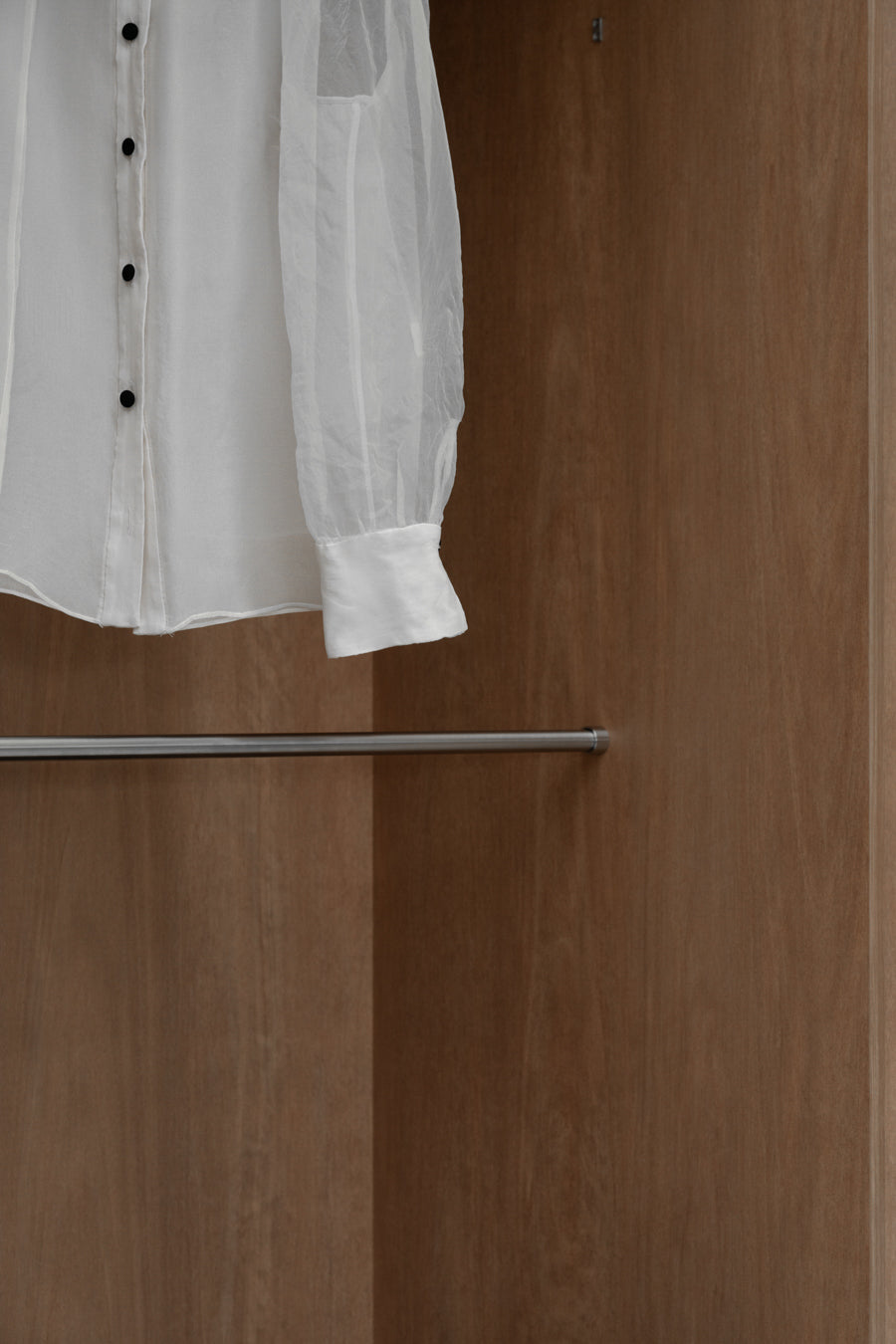

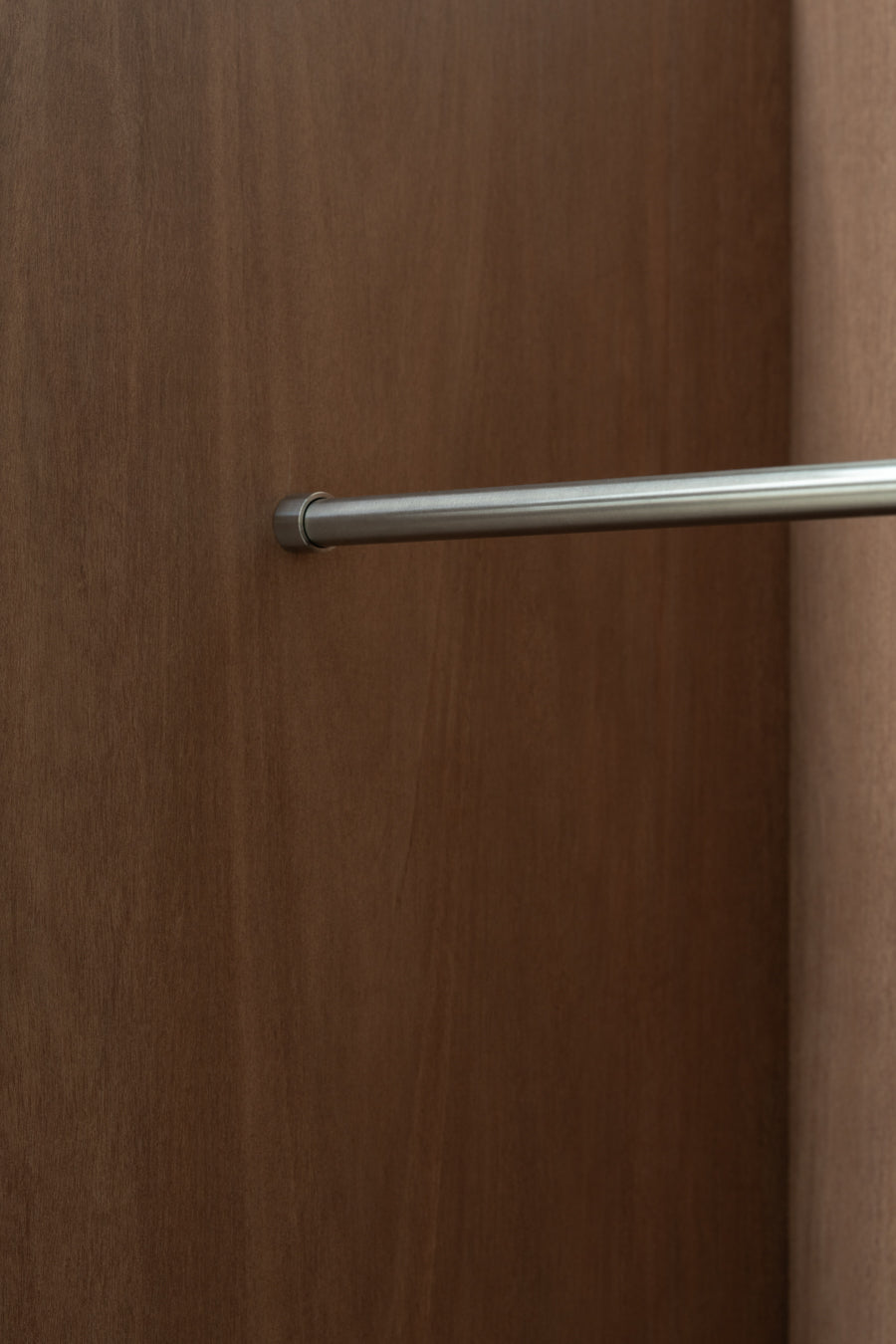

Introducing the Lia Hanging Rail Sets. A minimal, end-to-end hanging solution designed to span seamlessly between internal carcass panels. Defined by its compact circular fixing, Lia delivers a clean, unobtrusive profile suited to highly resolved joinery.

Fabricated from SS304 stainless steel, the system is designed for wardrobe interiors, laundry joinery, and retail applications where a continuous rail is required without top-mounted brackets.

Refer to specification drawing for installation measurements.

Specifications:

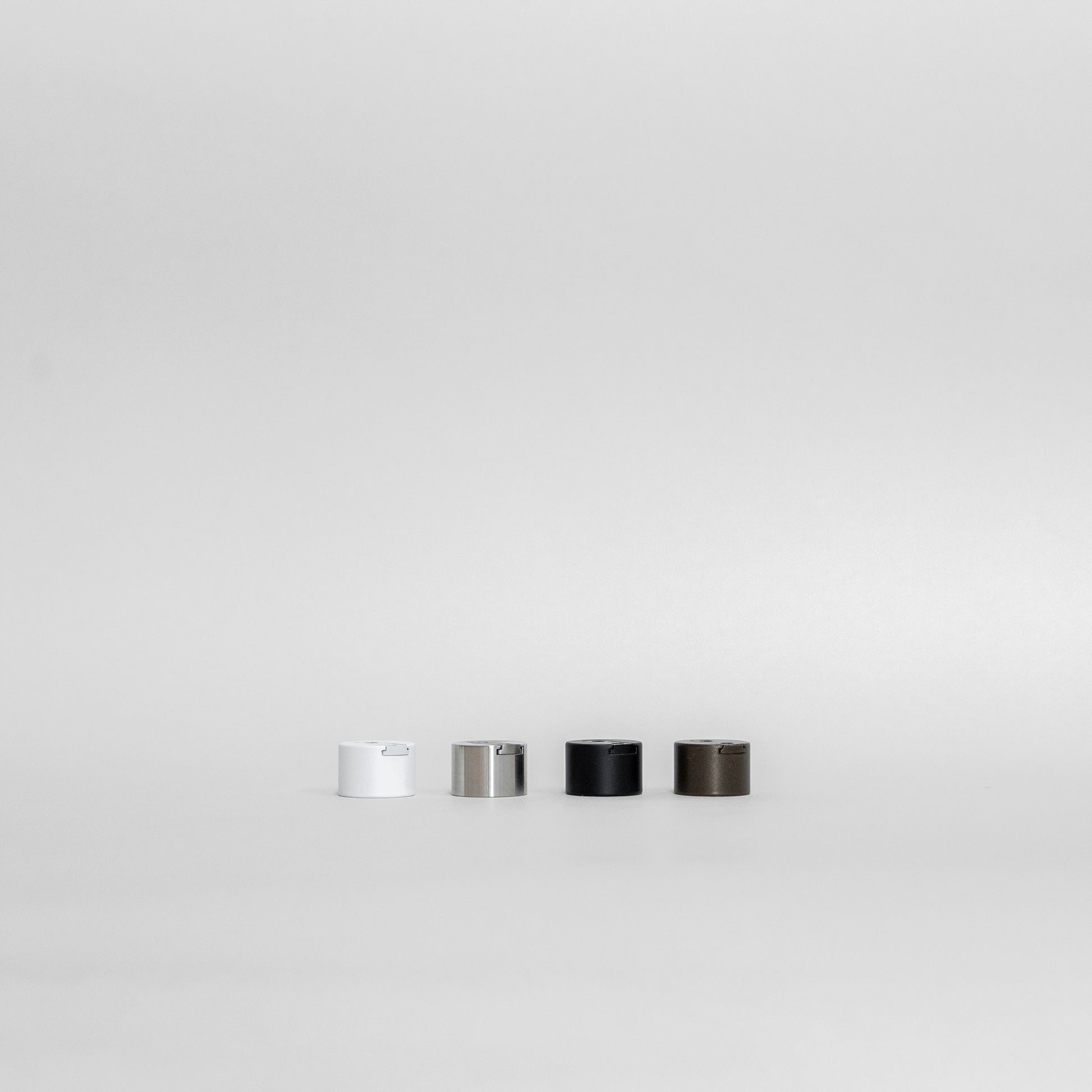

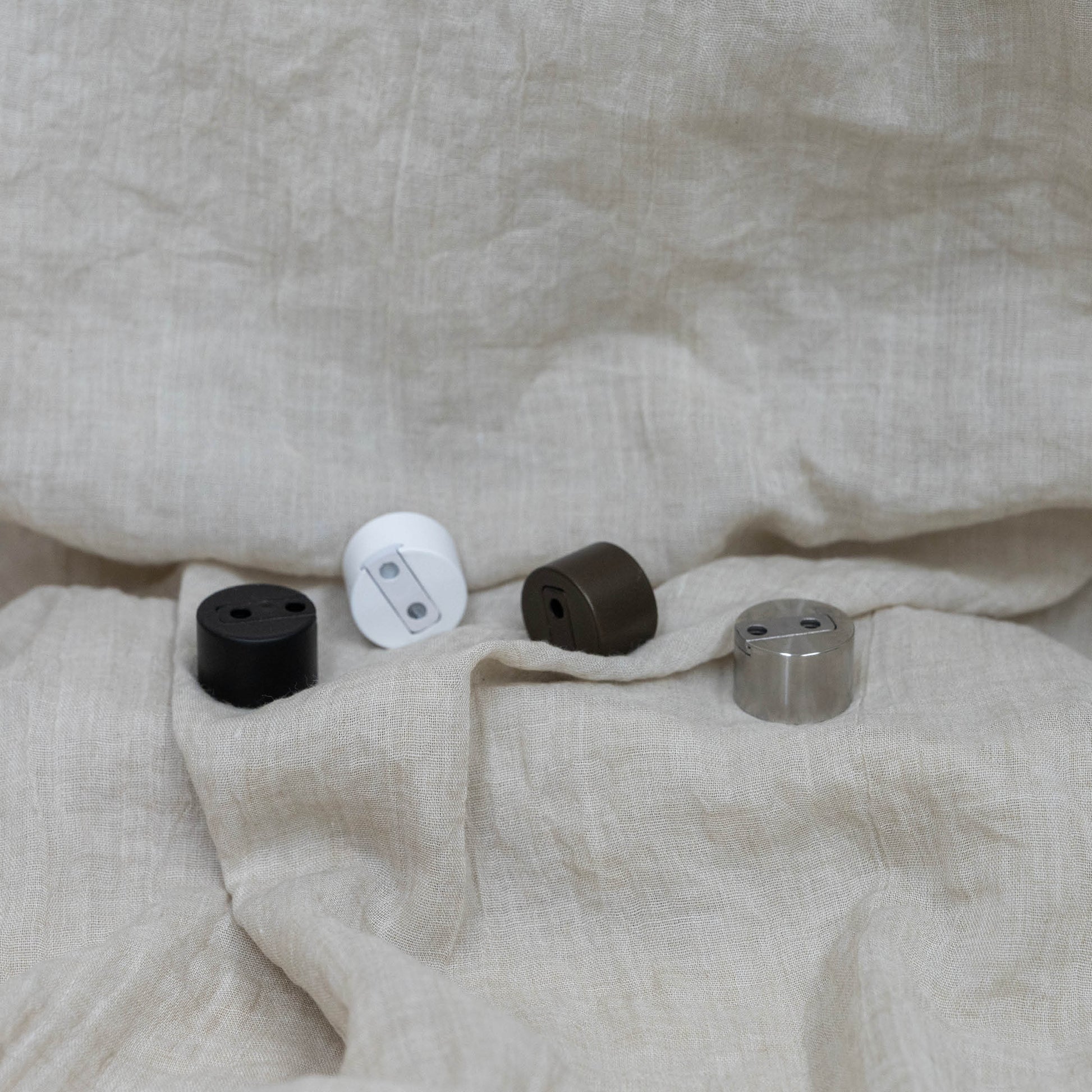

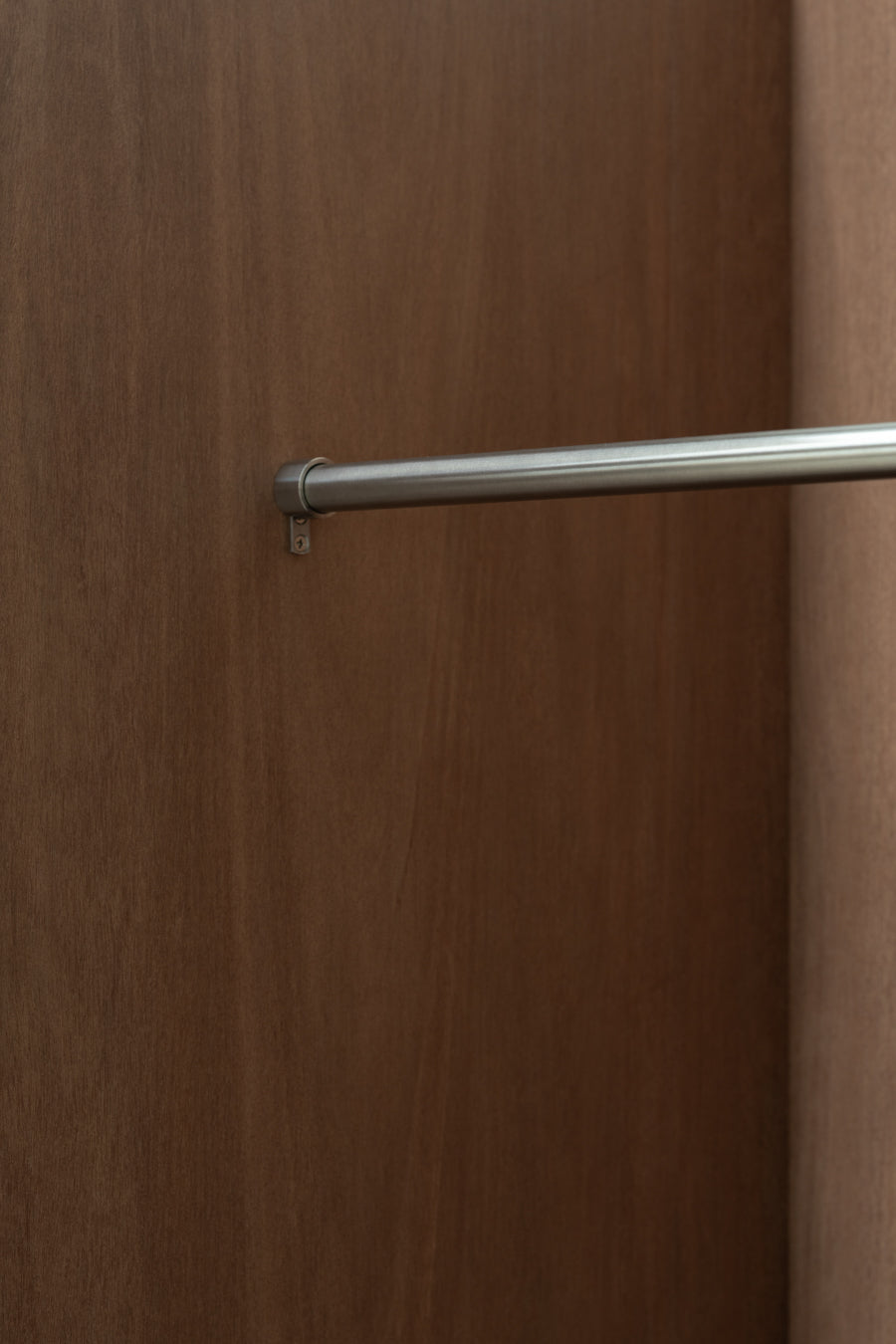

Lia End Bracket         24mm Ø × 16mm P
1200mm L Rail           19mm Ø x 1.2mm metal thickness
Optional Centre Bracket:
CJ Design                  15mm W × 70mm H × 25mm L
Rae Design                25mm Ø × 70mm H × 25mm P

Bundle configurations include:

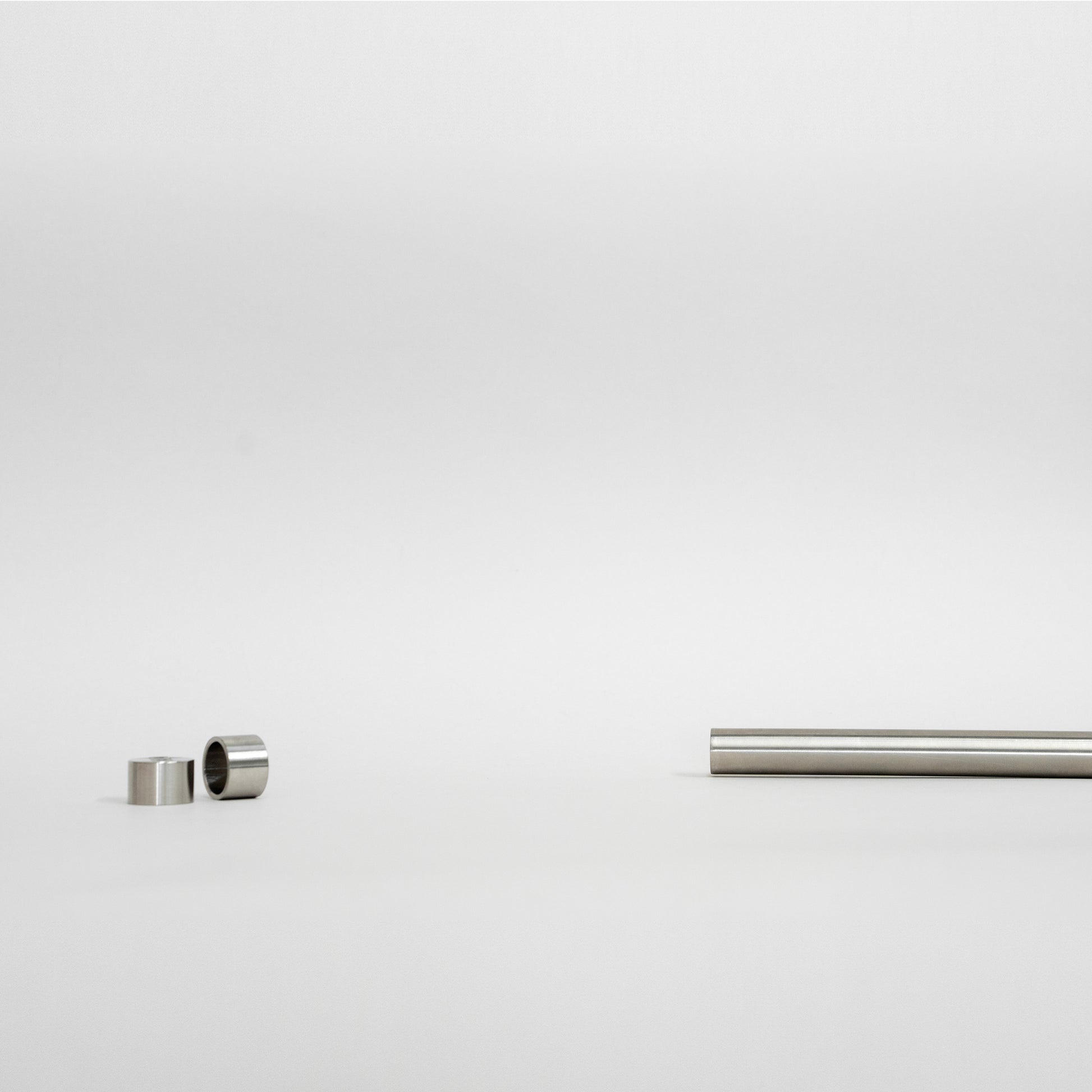

A (<800mm) : 2 x end brackets, 1 x 1200mm rail

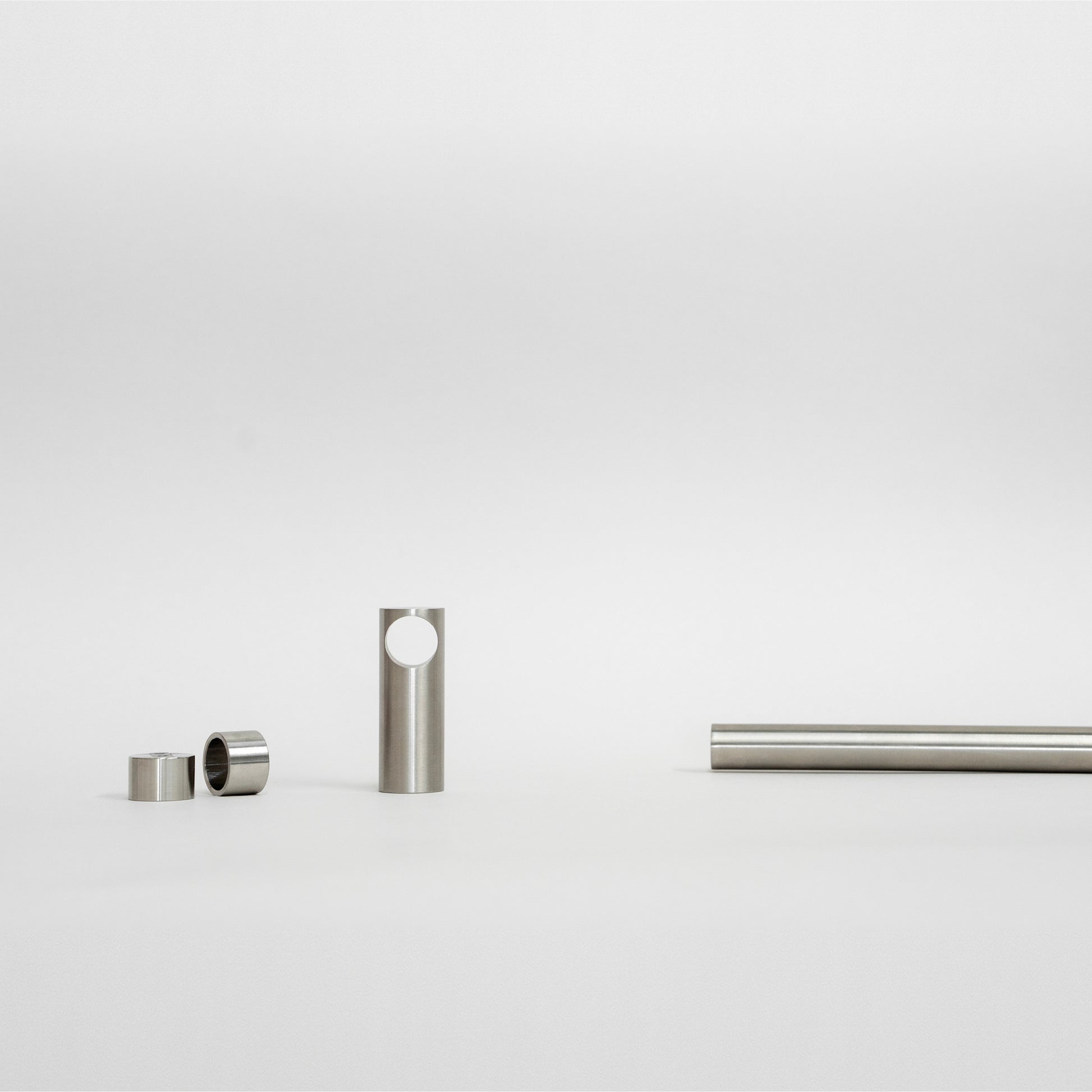

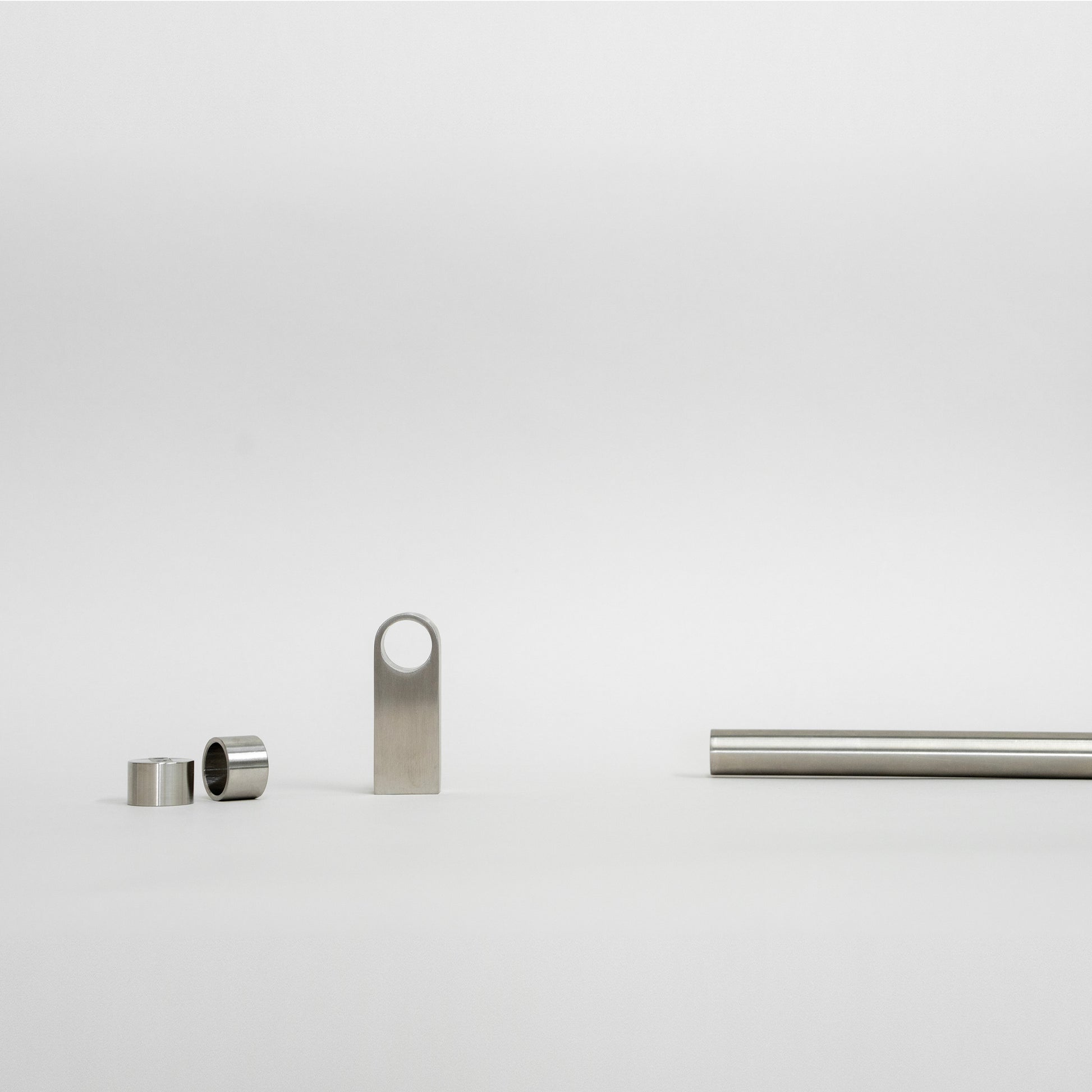

B (800-1200mm) : 2 x end brackets, 1 x centre bracket, 1 x 1200mm rail

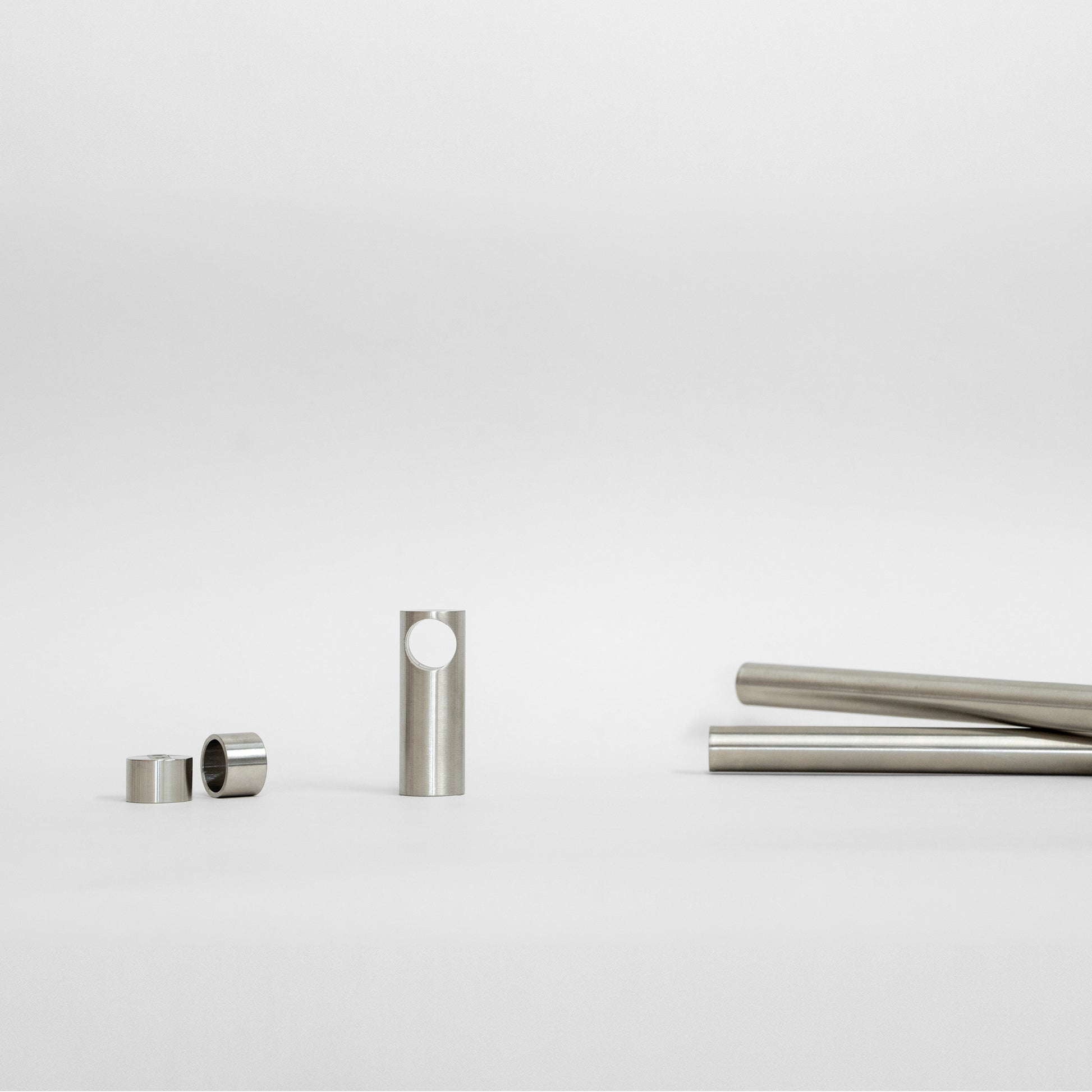

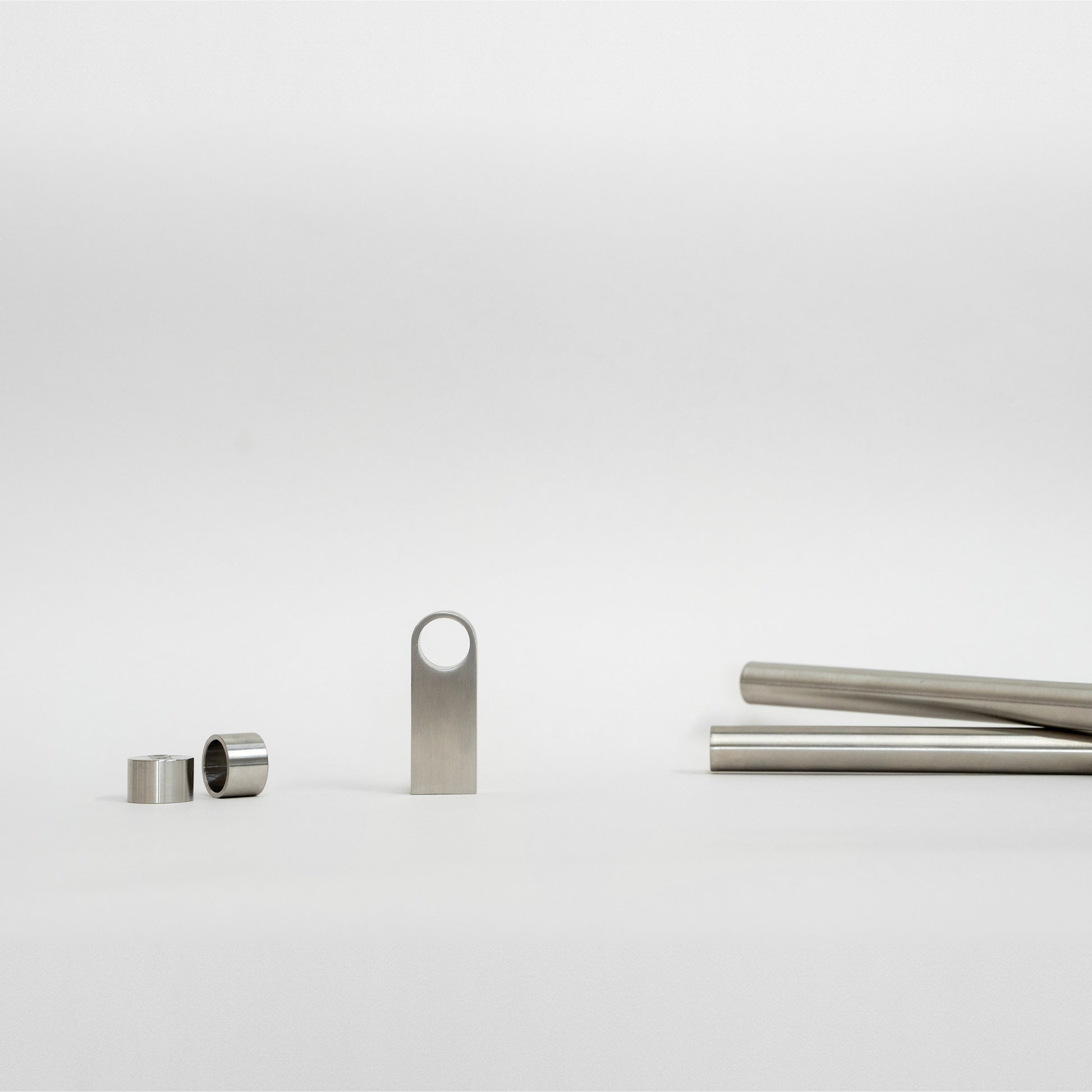

C (1200-1600mm) : 2 x end brackets, 1 x centre bracket, 2 x 1200mm rail

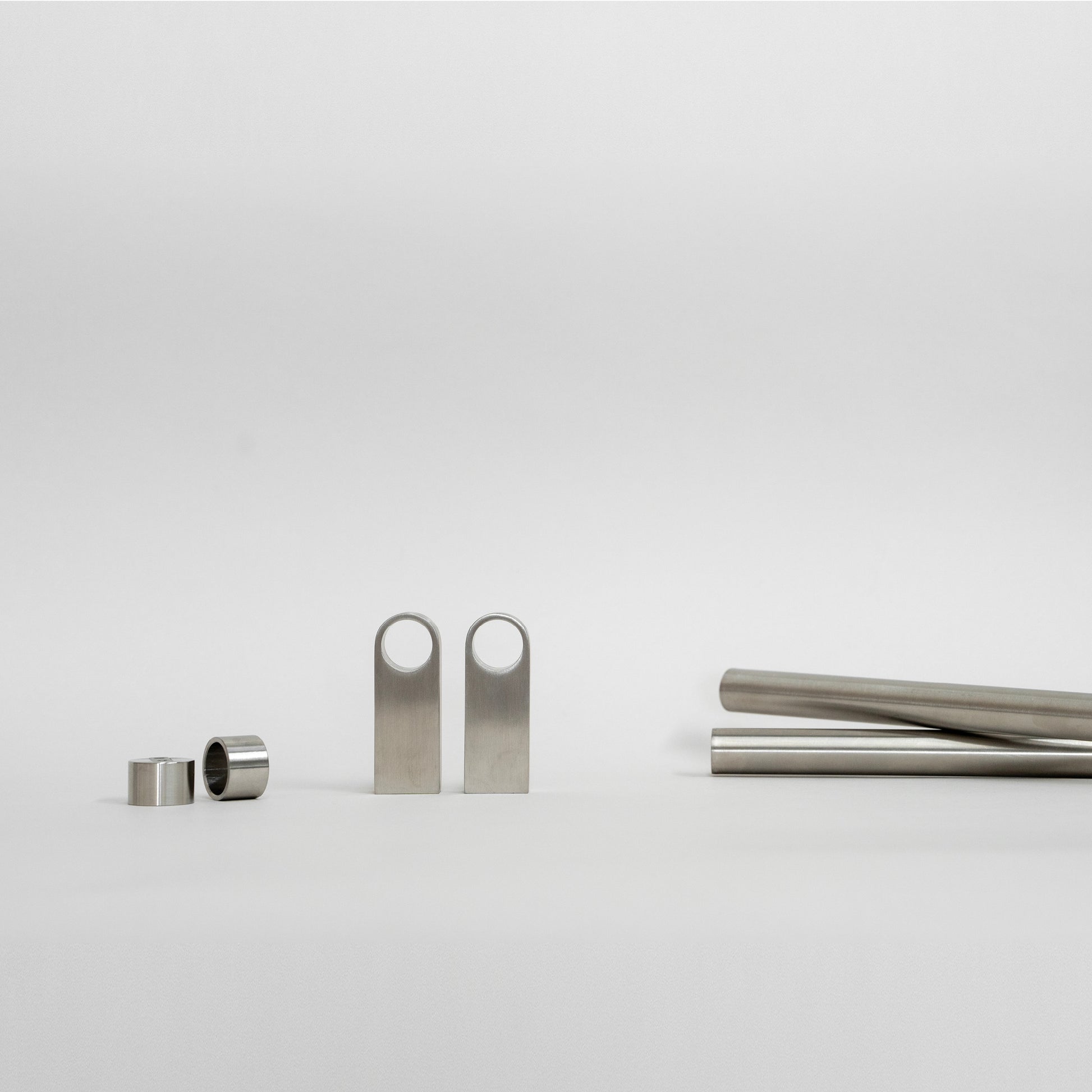

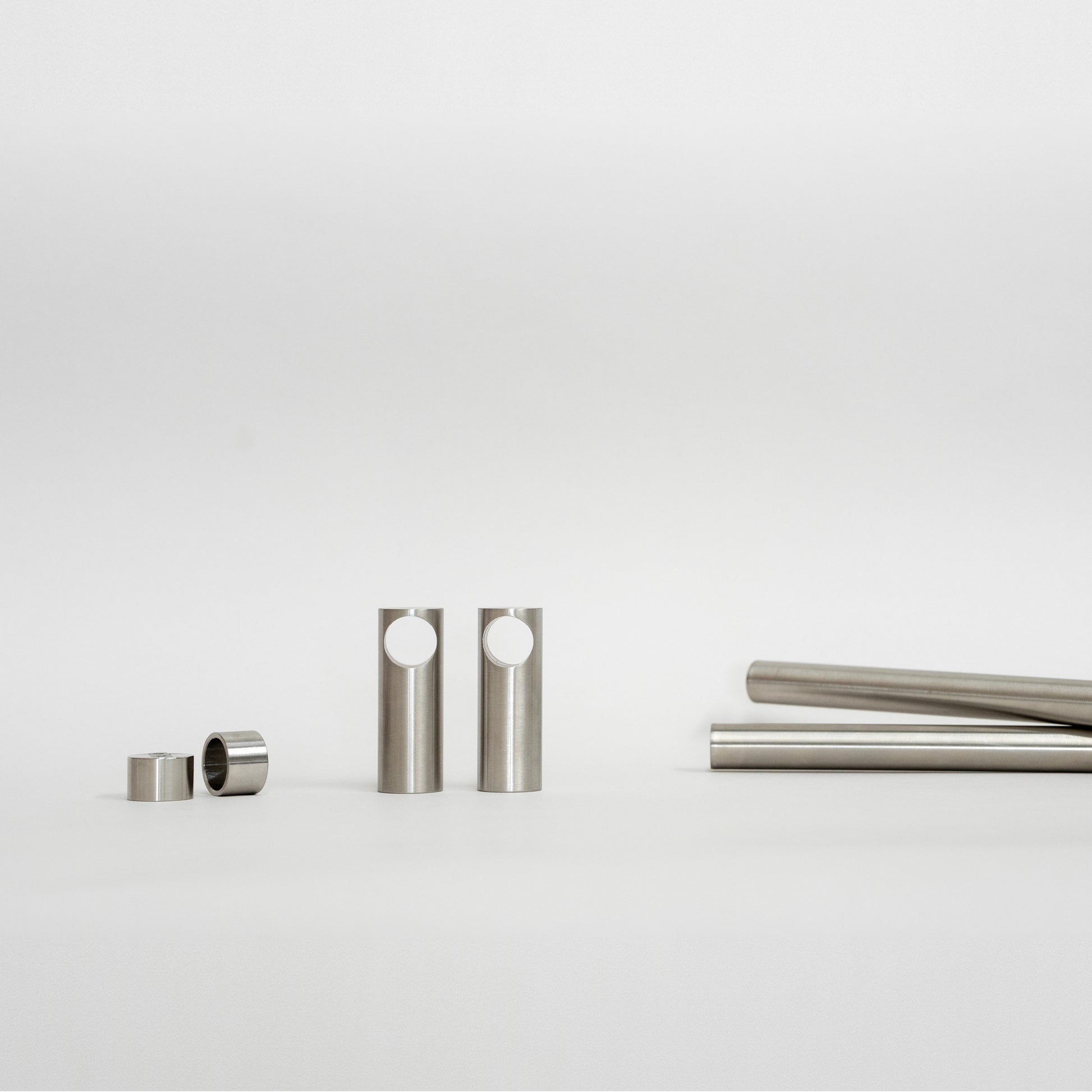

D (1600-1800mm) : 2 x end brackets, 2 x centre bracket, 2 x 1200mm rail

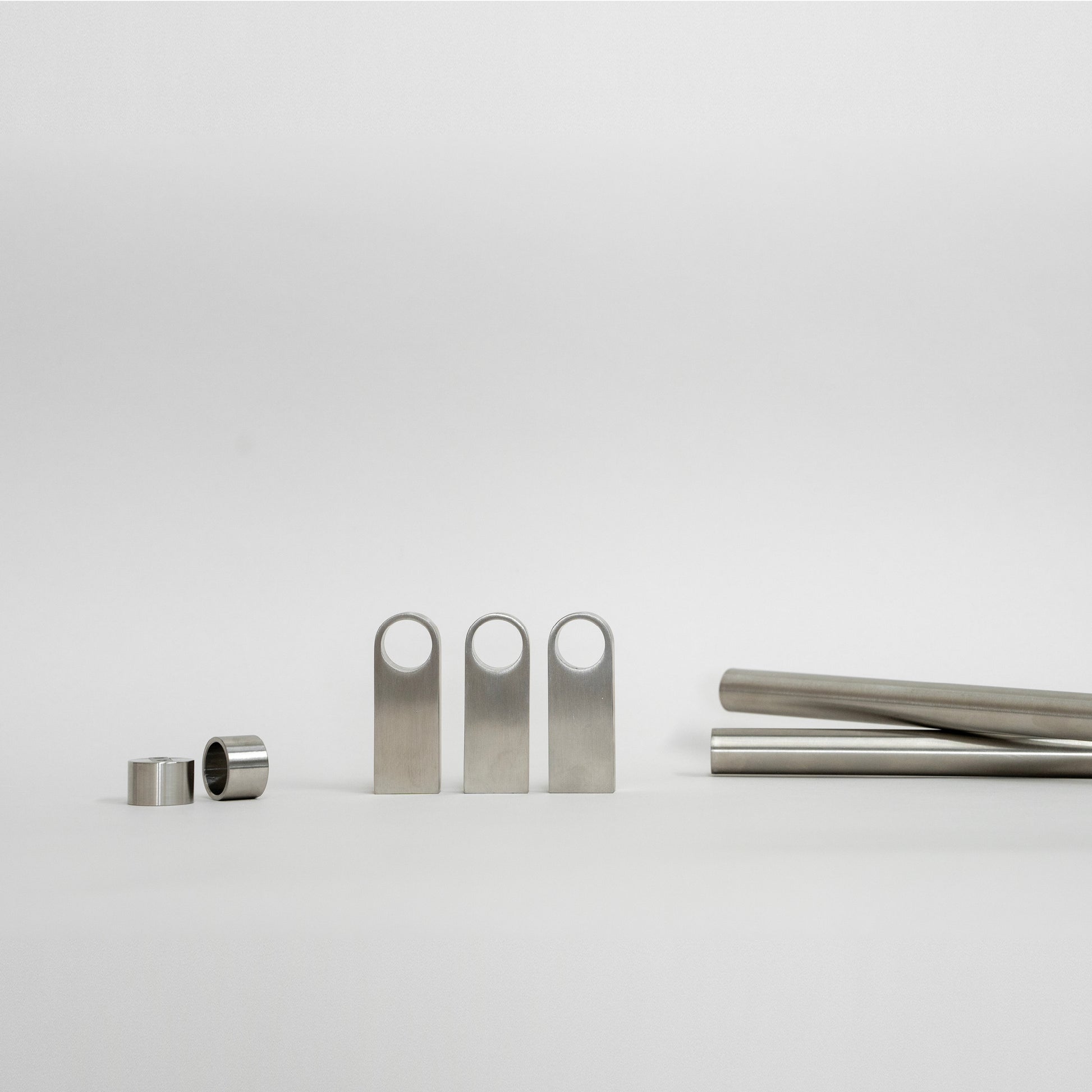

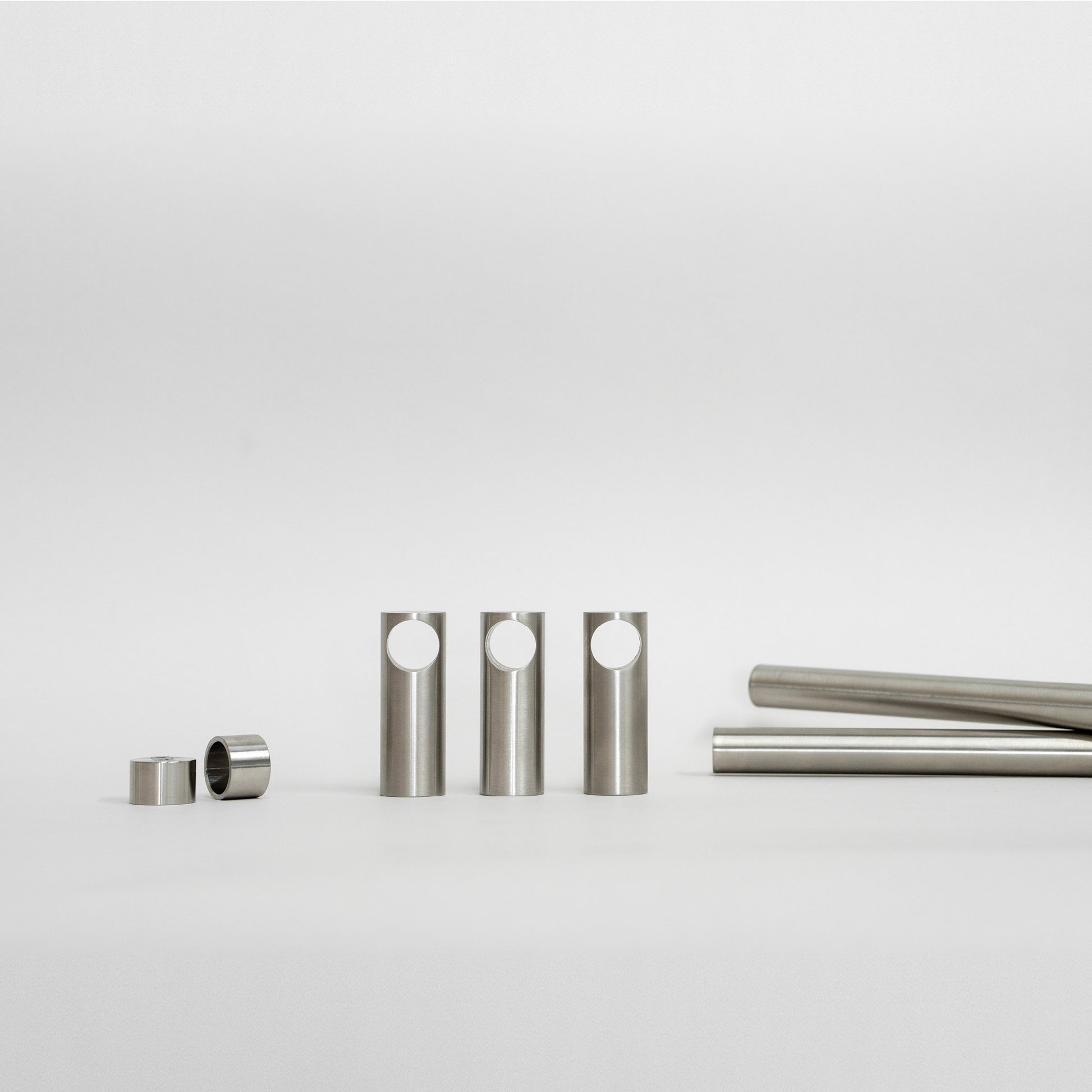

E (1800-2400mm) : 2 x end brackets, 3 x centre bracket, 2 x 1200mm rail

Please note:

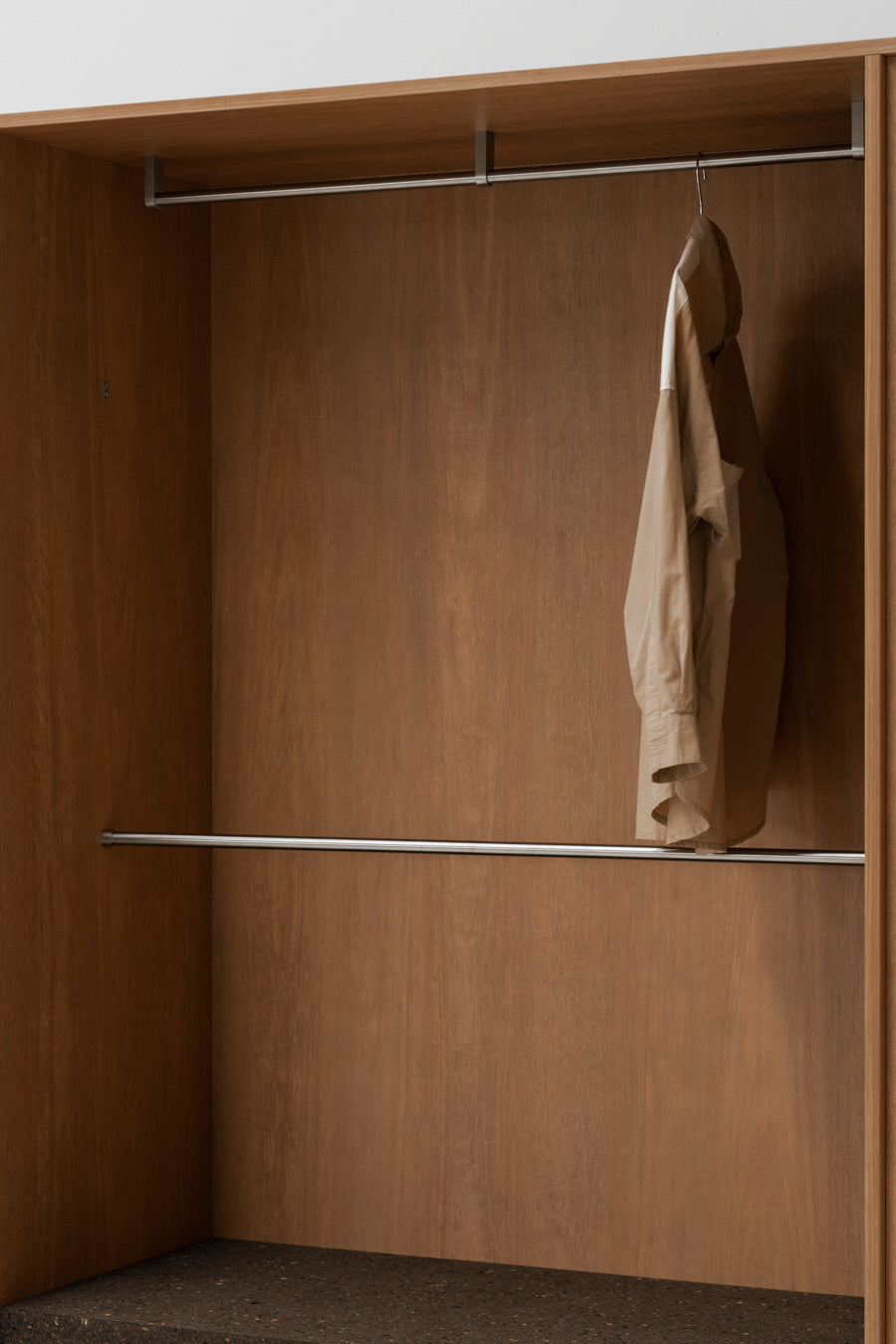

Centre support brackets are recommended for spans exceeding 800mm. Given the design, a top-mounted centre bracket is required and can be selected separately in either the CJ Design or Rae Design below. In addition to providing structural support, the centre bracket conceals the junction between two rail, creating a cleaner, more resolved finish.

30mm and 50mm screw fixings are included, along with an allen key for installation.
Items are sold as a complete set.
Contact us for larger quantity order discounts.

If you'd like to customise and build your own hanging rail set, you can here.

Download PDF specification drawing and product information here.
